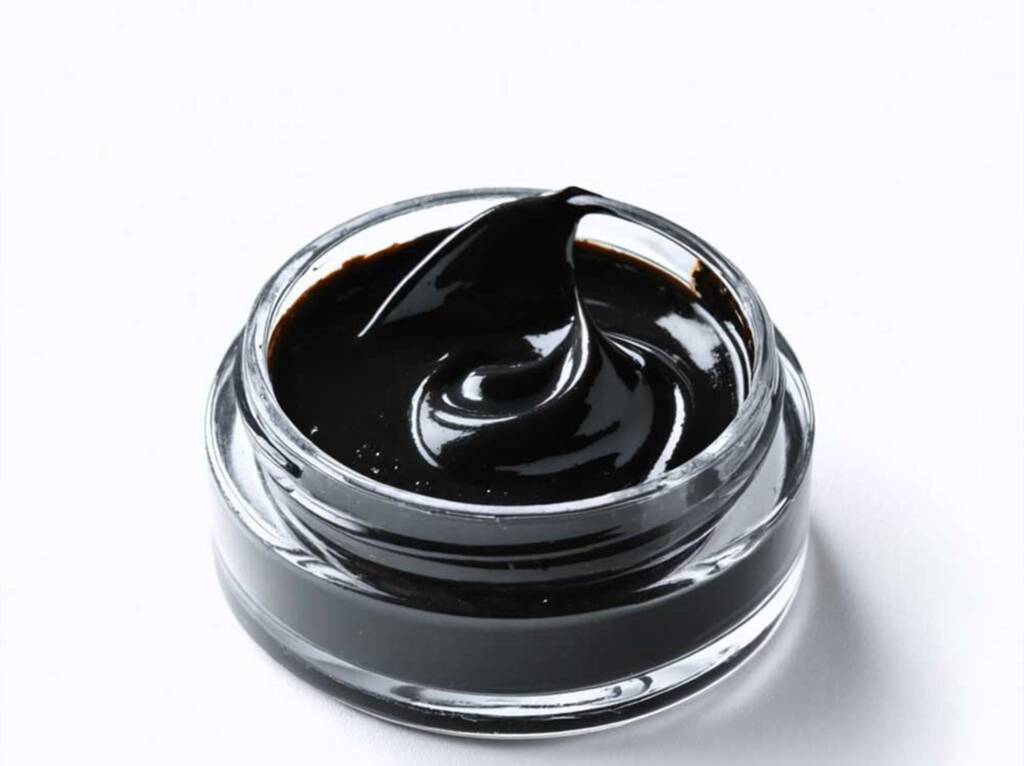

Carbon Nanotube–Based Paste for Superior Conductivity and Durability
CNT Paste is a specialized formulation in which carbon nanotubes (CNTs) are meticulously dispersed to deliver high electrical conductivity and mechanical robustness in a paste format. Developed by Nanografi Energy, this versatile, performance-oriented solution caters to a broad range of applications—from battery electrode coatings and sensor technologies to electronic circuit printing and industrial repair/maintenance.
Applications of Carbon Paste
Carbon Paste is used as an exciting material, especially in renewable energy and solar energy systems. It has many uses due to its wide compatibility, customizable structure, excellent conductive properties, and being a part of energy storage and conversion systems.
Technical Properties:
|
Test |
Properties |
|
Viscosity (Uncured) |
2.5-5.0 Pa.S |
|
Thickness (Cured) |
15-20 µm |
|
Sheet Resistance (Cured) |
100 Ω/sq/mil |
|
Adhesion |
5B |
|
Hardness |
6H |
|
Substrate |
PET, Glass, FR4 |
|
Screen |
13 µm emulsion, 325 DPI, SS |
|
Flood Speed |
50 mm/s |
|
Print Speed |
50 mm/s |
APPLICATIONS
